System efficacy up to 143 lm/W
Narrow and wide beam options
IP65/IK06 protection
50,000 hours lifetime @Ta 35⁰C
-24⁰C to 45⁰C working temperature

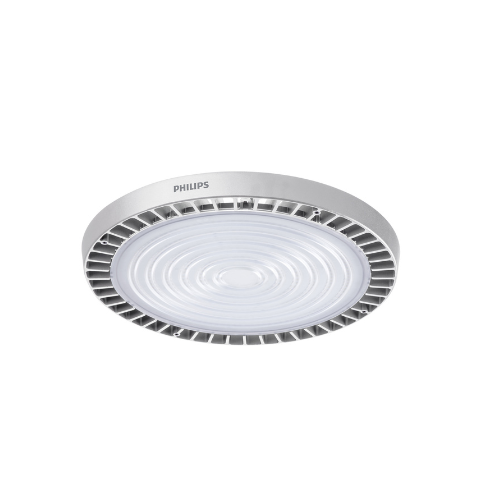

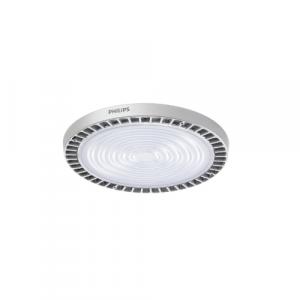

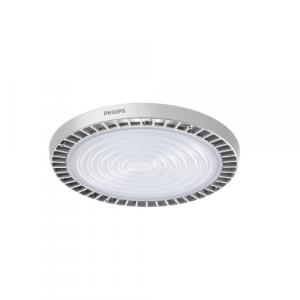

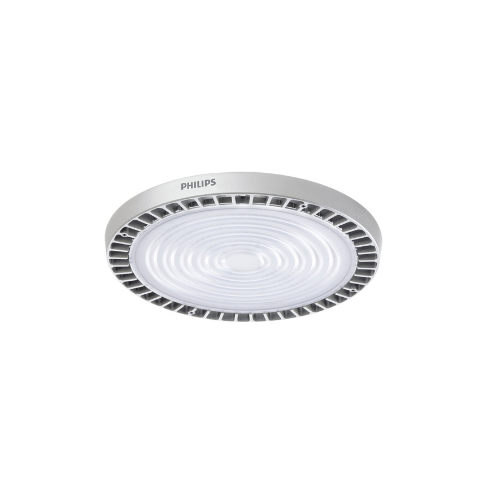

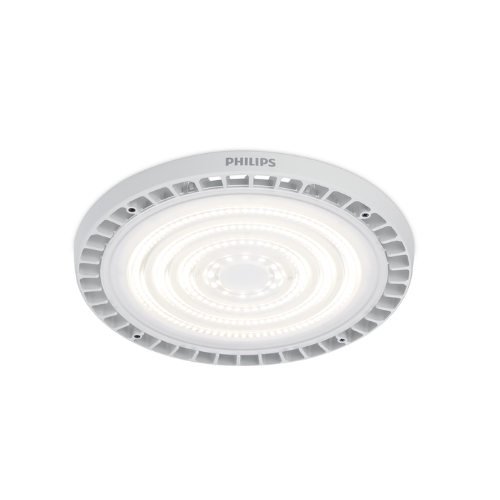

The GreenUp Round Highbay range of luminaires provides the optimal balance between basic performance and price. The family covers a wide product range with a variety of options, competitive specifications, and long-term quality and reliability. The range is suitable for most industrial applications.
| 12NC | Description | Specification |
|---|---|---|
| 911401672507 | BY518P LED110/CW PSU NB GM | 77W, 11000lm, 6500K, narrow beam |
| 911401672107 | BY518P LED110/CW PSU WB GM | 77W, 11000lm, 6500K, wide beam |
| 911401672407 | BY518P LED110/NW PSU NB GM | 77W, 11000lm, 4000K, narrow beam |
| 911401672007 | BY518P LED110/NW PSU WB GM | 77W, 11000lm, 4000K, wide beam |
| 911401672707 | BY518P LED160/CW PSU NB GM | 115W, 16000lm, 6500K, narrow beam |
| 911401672307 | BY518P LED160/CW PSU WB GM | 115W, 16000lm, 6500K, wide beam |
| 911401672607 | BY518P LED160/NW PSU NB GM | 115W, 16000lm, 4000K, narrow beam |
| 911401672207 | BY518P LED160/NW PSU WB GM | 115W, 16000lm, 4000K, wide beam |
| 911401648307 | BY518P LED210/CW PSU NB GM | 154W, 21000lm, 6500K, narrow beam |
| 911401647707 | BY518P LED210/CW PSU WB GM | 154W, 21000lm, 6500K, wide beam |
| 911401648207 | BY518P LED210/NW PSU NB GM | 154W, 21000lm, 4000K, narrow beam |
| 911401647607 | BY518P LED210/NW PSU WB GM | 154W, 21000lm, 4000K, wide beam |
| 911401648507 | BY518P LED260/CW PSU NB GM | 187W, 26000lm, 6500K, narrow beam |
| 911401647907 | BY518P LED260/CW PSU WB GM | 187W, 26000lm, 6500K, wide beam |
| 911401648407 | BY518P LED260/NW PSU NB GM | 187W, 26000lm, 4000K, narrow beam |
| 911401647807 | BY518P LED260/NW PSU WB GM | 187W, 26000lm, 4000K, wide beam |
| 911401648707 | BY518P LED300/CW PSU NB GM | 207W, 30000lm, 6500K, narrow beam |
| 911401648107 | BY518P LED300/CW PSU WB GM | 207W, 30000lm, 6500K, wide beam |
| 911401648607 | BY518P LED300/NW PSU NB GM | 207W, 30000lm, 4000K, narrow beam |
| 911401648007 | BY518P LED300/NW PSU WB GM |
207W, 30000lm, 4000K, wide beam |
