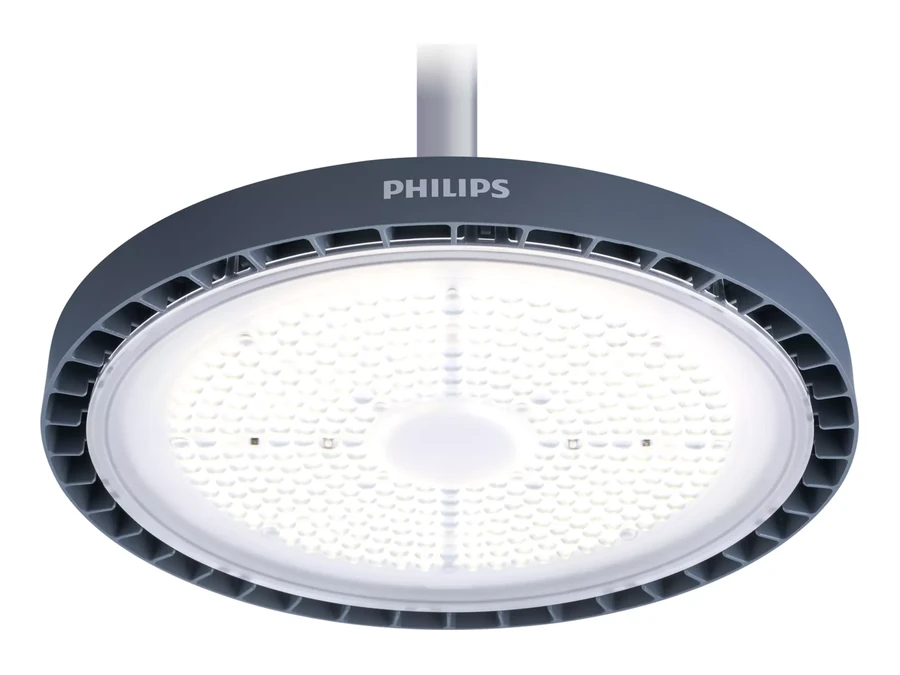

GreenPerform Highbay — BY698
A heavy-duty high-bay platform engineered for demanding industrial spaces — including cold-room applications down to -38°C.
Philips GreenPerform Highbay G5 delivers heavy-duty industrial lighting in an ultra-compact design, engineered with advanced thermal convection pathways and superior Unified Glare Rating (UGR). It supports both standalone configurations and cloud-synced IoT networks via Interact software, Ideal for manufacturing plants, smart logistics centers, open warehouses, and sub-zero cold rooms.
Toàn Tấn is an authorized Philips/Signify distributor in Vietnam — every GreenPerform Highbay BY698 we supply is genuine, warrantied stock with local project support.
Technical specifications
| Luminous flux | 10500 / 15000 / 20500 / 25000 / 31000 |
|---|---|
| System power | 63 / 88 / 121 / 144 / 181 |
| Efficacy | 170 lm/W (PSU), 160 lm/W (PSD/SIA) |
| Optics | WB (85°), NB (55°) |
| Glare rating (UGR) | UGR 22(NB), 25 (WB) |
| Operating temperature | -30ºC to +50ºC |
| Surge protection | 4KV / 4KV |
| Input voltage | 220-240V, 50/60 Hz |
| Controls | PSU / EcoSet / PSD (DALI) / SIA |
| Mounting | Suspension (Hook/Pipe); Surfaced (Bracket) |
| Certifications | CB / CE / EMC |
| Materials & finish | Housing: Aluminium die-casting heat sink; Colour: Dark Grey |
| CRI | Standard: 80 |
| CCT | 4000K/6500K |
| Glare control | Glare Control (UGR <22 for Narrow Beam) |
| Notes | Suitable for Cold room application (-38 degree, 100% RH, IP66) |
| Dimensions | LED105: 290 x 90mm; LED150: 290 x 90mm; LED200: 330 x 99mm; LED250: 393 x 99mm; LED300: 393 x 99mm |
| IP rating | IP65 |
| IK rating | IK05 / IK06 |
| Badges | interact ready · GreenMark Compliant · SLE · EE · 75k hours |
Specifications summarized from the Signify Professional Lighting Catalogue 2026–27; confirm exact ordering codes with our team.
Ordering variants
| LED105 | Luminous flux: 10500 · System power: 63 · Dimensions: 290 x 90mm |
|---|---|
| LED150 | Luminous flux: 15000 · System power: 88 · Dimensions: 290 x 90mm |
| LED200 | Luminous flux: 20500 · System power: 121 · Dimensions: 330 x 99mm |
| LED250 | Luminous flux: 25000 · System power: 144 · Dimensions: 393 x 99mm |
| LED300 | Luminous flux: 31000 · System power: 181 · Dimensions: 393 x 99mm |
Applications
- Manufacturing plants
- Smart logistics centers
- Open warehouses
- Sub-zero cold rooms
