High efficacy
• 160 lm/W (4000 K CCT up to 300 W)
• 195 - 200 lm/W (4000 K CCT up to 100 W)
• Increased energy efficiency reduces carbon footprint

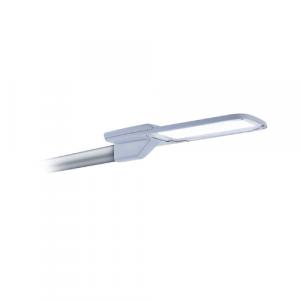

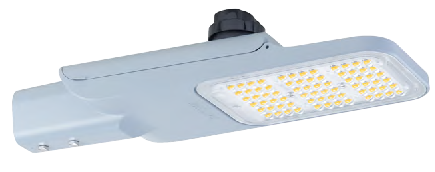

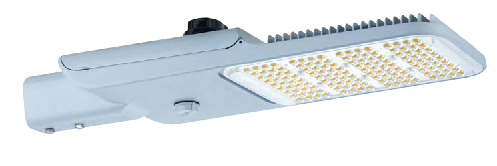

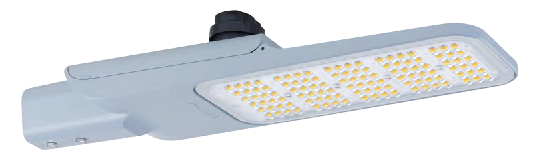

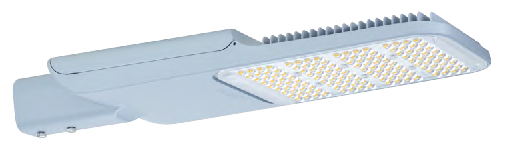

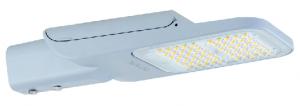

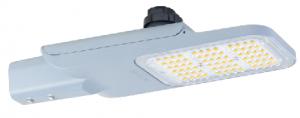

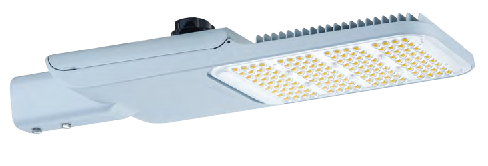

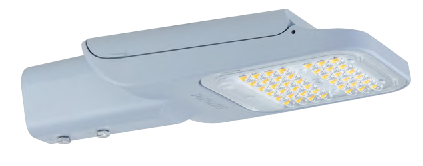

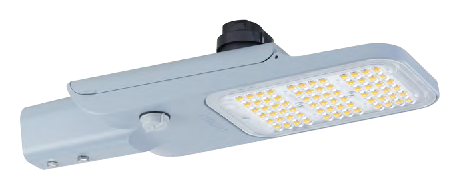

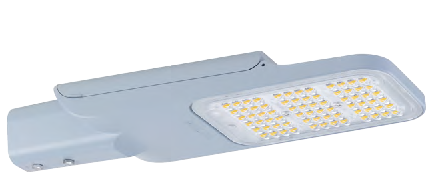

PHILIPS RoadFlair Pro BRP59X
Municipalities value energy saving more than ever, as energy price hikes put increasing pressure on the budgets. Street lighting consumes substantial energy, so large-scale upgrades to energy-efficient LED streetlights are fundamental to cities' cost-saving efforts. RoadFlair Pro has been upgraded to minimize costs while maximizing efficacy, safety, and functionality. And the best part - RoadFlair Pro offers a streamlined design, so it maintains an attractive aesthetic on city streets.
These streetlights not only look good, they also offer excellent performance Future-proof technology combines with high efficacy (160 lm/W and 200 lm/W), innovative design, and smart connectivity in a light that makes your street look brighter and better
Benefits
• High efficacy
• Appealing and sustainable design
• Connected and system-ready
• Higher durability and reliability
• World-class photometric design
• Equipped with a Service tag, a QR-based identification system that makes each luminaire uniquely identifiable and provides maintenance, installation, and spare part information
Features
• 160 lm/W system efficacy (up to 300W)
• 200 lm/W system efficacy (up to 100W)
• Long service lifetime 100Khrs L80@Ta 35°C
• With 10kV or 15kV Surge protection Device
• Ready to be paired with lighting management systems and sensors
Application
• Motorways, inter-urban main roads, boulevards and avenues, roundabouts, pedestrian crossings
• Residential streets, side streets, squares, parks, cycle and pedestrian paths, playgrounds
• Parking areas, industrial areas, petrol stations, rail yards, airports, harbors, waterways
Specification overview
LED Type | 5050 |
Flux packages (lm) | up to 48900 |
System wattage | up to 300W |
CCT/color | 3000K / 4000K |
Other CCT options | 5700K / 2200K / 2700K |
CRI | 70 (typ.) |
System efficacy (typical@4000K) | 160lm/W / 195-200lm/W (up to 100W) |
Target light distribution | DM / DM1 / DW2 / DWV / DWP / DWP3 |
Surge Protection device (SPD) | 10kV / 15kV |
Protection class IEC | Safety class I or Safety class II |
Lifetime | 100k hrs L80B50 @ 35C Outdoor |
Operation temperature | - 40ºC < Ta< 50ºC |
IP rating | IP66 |
IK | IK08 |

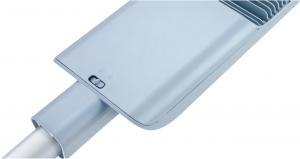

Mounting | Side entry 42~60mm with optional adjustable spigot |
Material | Die-casting Aluminum and PC |

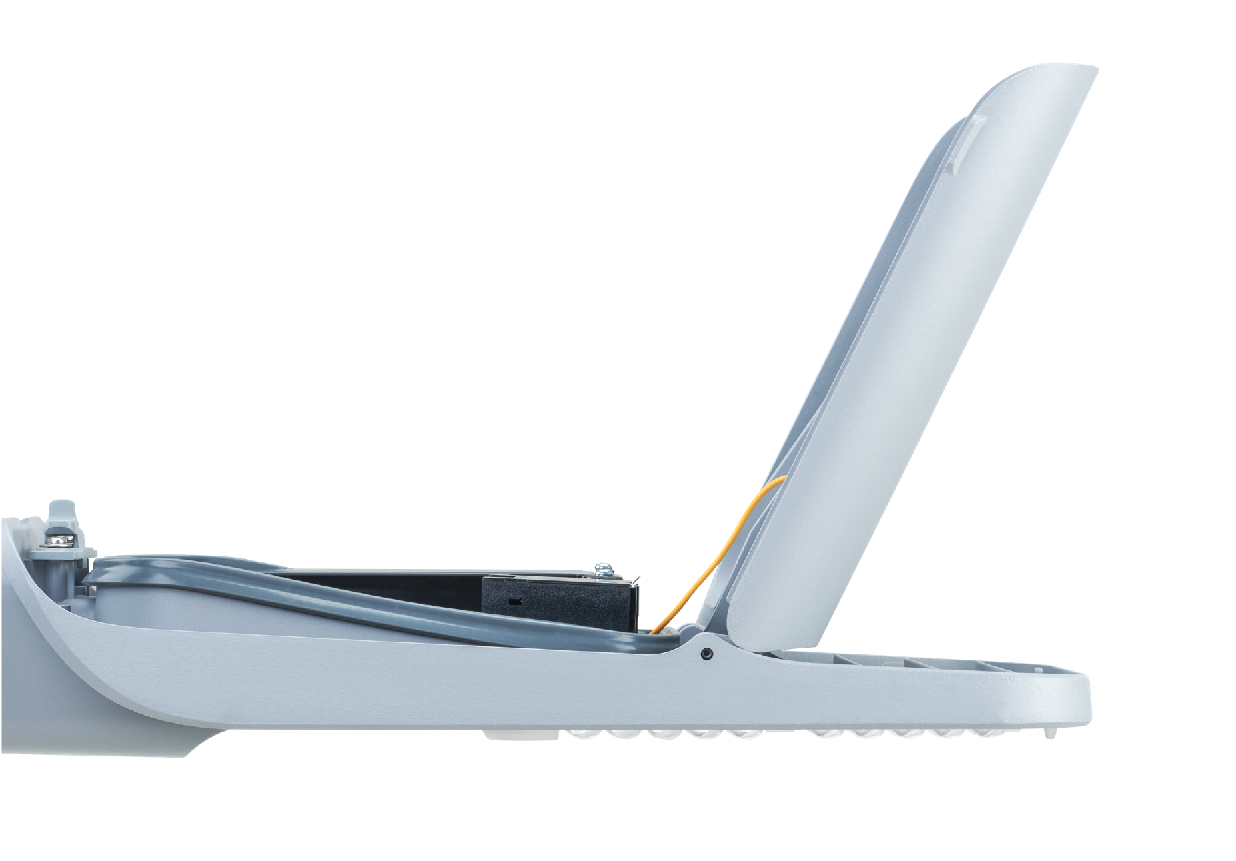

Maintenance | Toolless open for Gear Box and toolless maintenance for SPD |
Control interface | Analog (1-10V), StepDim, DALI, SR |
System interface | NEMA 7-pin socket at top / ZD4i SR socket at bottom |
Approbation | CB / CE / CQC / RCM / ZD4i |
