System efficiency up to 140 lm/W
Wide beam, batwing & Lambertian
DALI, Coded lighting, POE
Surface mounted & suspended, track version

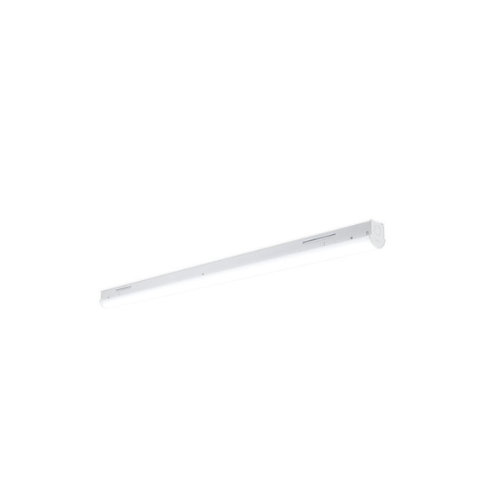

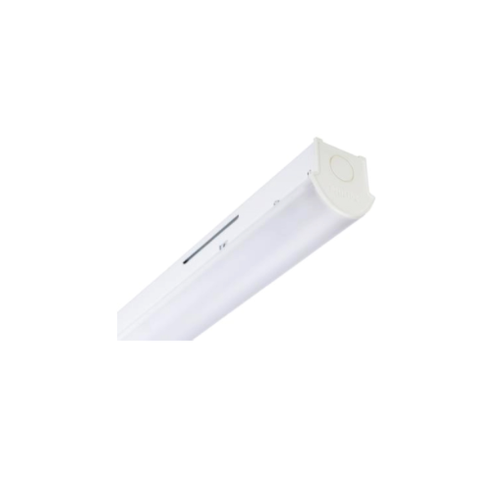

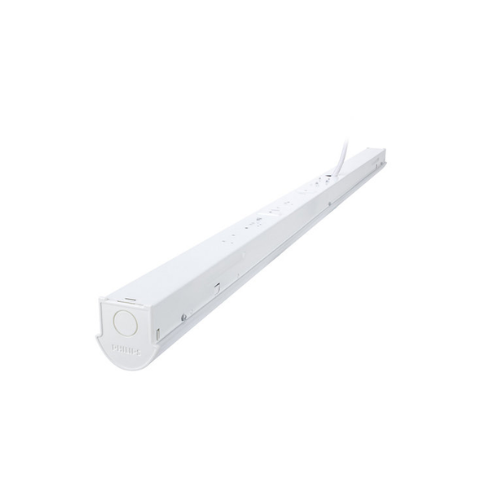

GreenPerform batten BN398C is a cost competitive linear solution with good performance and multiple lumen output for retail and industry applications. It offers surface mount and suspension installations to cater for different mounting options. Its multiple optic designs accommodate different applications as well.
| 12NC | Description | Specification |
|---|---|---|
| 911401583251 | BN398C LED20/NW L600 PSU OP | 14.2W, 2100lm, 4000K |
| 911401583351 | BN398C LED20/CW L600 PSU OP | 14.2W, 2100lm, 6500K |
| 911401501571 | BN398C LED20/CW L1200 PSU OP | 15.8W, 2400lm, 6500K |
| 911401501671 | BN398C LED20/NW L1200 PSU OP | 15.8W, 2400lm, 4000K |
| 911401583451 | BN398C LED40/NW L1200 PSU OP | 29W, 4100lm, 4000K |
| 911401583551 | BN398C LED40/CW L1200 PSU OP | 29W, 4100lm, 6500K |
| 911401583651 | BN398C LED69/NW L1200 PSU OP | 49W, 6900lm, 4000K |
| 911401583751 | BN398C LED69/CW L1200 PSU OP | 49W, 6900lm, 6500K |
| 911401583851 | BN398C LED87/NW L1500 PSU OP | 61W, 8600lm, 4000K |
| 911401583951 | BN398C LED87/CW L1500 PSU OP | 61W, 8600lm, 6500K |
| 911401584851 | BN398C LED20/NW L600 PSU DA | 15.5W, 2000lm, 4000K |
| 911401584951 | BN398C LED20/CW L600 PSU DA | 15.5W, 2000lm, 6500K |
| 911401585051 | BN398C LED40/NW L1200 PSU DA | 29W, 4100lm, 4000K |
| 911401585151 | BN398C LED40/CW L1200 PSU DA | 29W, 4100lm, 6500K |
| 911401585251 | BN398C LED69/NW L1200 PSU DA | 55W, 6800lm, 4000K |
| 911401585351 | BN398C LED69/CW L1200 PSU DA | 55W, 6800lm, 6500K |
| 911401585451 | BN398C LED87/NW L1500 PSU DA | 68W, 8500lm, 4000K |
| 911401585551 | BN398C LED87/CW L1500 PSU DA | 68W, 8500lm, 6500K |
| 911401585651 | BN398C LED20/NW L600 PSU WB | 15.5W, 2000lm, 4000K |
| 911401585751 | BN398C LED20/CW L600 PSU WB | 15.5W, 2000lm, 6500K |
| 911401585851 | BN398C LED40/NW L1200 PSU WB | 29W, 4100lm, 4000K |
| 911401585951 | BN398C LED40/CW L1200 PSU WB | 29W, 4100lm, 6500K |
| 911401586051 | BN398C LED69/NW L1200 PSU WB | 55W, 7000lm, 4000K |
| 911401586151 | BN398C LED69/CW L1200 PSU WB | 55W, 7000lm, 6500K |
| 911401586251 | BN398C LED87/NW L1500 PSU WB | 68W, 8700lm, 4000K |
| 911401586351 | BN398C LED87/CW L1500 PSU WB | 68W, 8700lm, 6500K |
| 12NC | Description | Specification |
|---|---|---|
| 911401584051 | BN398C LED20/NW L600 PSD OP | 14.5W, 2100lm, 4000K |
| 911401584151 | BN398C LED20/CW L600 PSD OP | 14.5W, 2100lm, 6500K |
| 911401584251 | BN398C LED40/NW L1200 PSD OP | 30W, 4100lm, 4000K |
| 911401584351 | BN398C LED40/CW L1200 PSD OP | 30W, 4100lm, 6500K |
| 911401584451 | BN398C LED69/NW L1200 PSD OP | 49W, 6800lm, 4000K |
| 911401584551 | BN398C LED69/CW L1200 PSD OP | 49W, 6800lm, 6500K |
| 911401584651 | BN398C LED87/NW L1500 PSD OP | 61W, 8500lm, 4000K |
| 911401584751 | BN398C LED87/CW L1500 PSD OP | 61W, 8500lm, 6500K |
| 12NC | Description | Specification |
|---|---|---|
| 911401587651 | BN398C LED20/NW L600 PSU OP TC | 14.2W, 2100lm, 4000K |
| 911401587751 | BN398C LED20/CW L600 PSU OP TC | 14.2W, 2100lm, 6500K |
| 911401587851 | BN398C LED40/NW L1200 PSU OP TC | 29W, 4100lm, 4000K |
| 911401587951 | BN398C LED40/CW L1200 PSU OP TC | 29W, 4100lm, 6500K |
| 911401588051 | BN398C LED20/NW L600 PSD OP TC | 14.2W, 2100lm, 4000K |
| 911401588151 | BN398C LED20/CW L600 PSD OP TC | 14.2W, 2100lm, 6500K |
| 911401588251 | BN398C LED40/NW L1200 PSD OP TC | 30W, 4100lm, 4000K |
| 911401588351 | BN398C LED40/CW L1200 PSD OP TC | 30W, 4100lm, 6500K |
| 911401588451 | BN398C LED20/NW L600 PSU DA TC | 15.5W, 2000lm, 4000K |
| 911401588551 | BN398C LED20/CW L600 PSU DA TC | 15.5W, 2000lm, 6500K |
| 911401588651 | BN398C LED40/NW L1200 PSU DA TC | 29W, 4100lm, 4000K |
| 911401588751 | BN398C LED40/CW L1200 PSU DA TC | 29W, 4100lm, 6500K |
| 911401588851 | BN398C LED20/NW L600 PSU WB TC | 15.5W, 2000lm, 4000K |
| 911401588951 | BN398C LED20/CW L600 PSU WB TC | 15.5W, 2000lm, 6500K |
| 911401589051 | BN398C LED40/NW L1200 PSU WB TC | 29W, 4100lm, 4000K |
| 911401589151 | BN398C LED40/CW L1200 PSU WB TC | 29W, 4100lm, 6500K |
| 12NC | Description | Specification |
|---|---|---|
| 911401503461 | BY398Z CM-S | Bracket for surface-mounted |
| 911401503561 | BY398Z SPM-S | Bracket for suspended |
| 911401503961 | DALI TC L1000 WH | DALI track 1m |
| 911401503761 | PRO-D631 L | Connector(Left) for DALI track |
| 911401503661 | PRO-0432 | End Cap for DALI track |
| 911401503861 | PRO-D634 | Middle connector for DALI track |
| 911401567901 | BY208Z SP | Suspended pipe accessory |
| 911400893980 | RCS170 1C L1000 WH | ON/OFF track 1m |
| 911400894280 | RCS170 1C L2000 WH | ON/OFF track 2m |
