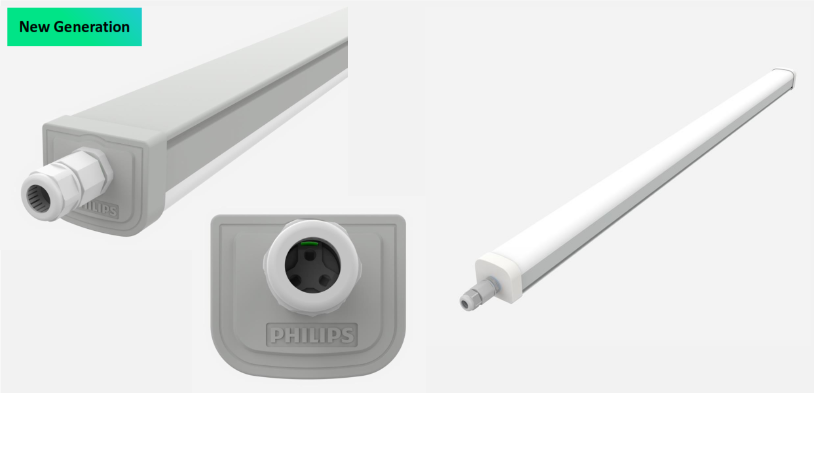

PHILIPS SmartBright Waterproof WT068 G2

PHILIPS SmartBright Waterproof WT068 G2

Oﬀering exceptional value, the new Smartbright Waterproof Batten G3 provides ﬂexibility to
customer to choose from 3 sizes, standard and through wiring version and 2 CCTs to cater to diﬀerent
customer needs.

Beneﬁts
• Reliable with a long service life of 30,000 hours(L70)
• IP66/IK06 - Water and dustproof for all weather
• Quick connector for easy installation

Features
• 2 colour temperatures, 3 sizes
and standard and through
wiring version

Applications
• Parkings
• Garages
• Oﬃces

Specification overview

Lumen output	2ft：1800lm 4ft：3600lm 5ft：5600lm
CCT	4000K/6500K
CRI	>80
SDCM	<5
Power consumption	15W（±10%）/30W（±10%）/46.5W（±10%)
Power Factor (system)	≥0.9
System Efficacy	120lm/W
Power consumption	15W/30W/46.5W（±10%）
Safety Class (driver+system)	Class II
IPxx	IP66
IKxx	IK08
Housing material	PC (Housing and Cap)+ SS Clips
Glow wire rating	850℃ (current carrying components)
Mounting	Suspended & Surface mount
Through wiring	Optional
Operating temperature range	-20～+45℃
Size (WxH)	65x55mm
Lifetime	30khrs，L70B50@ta25℃
Warranty	3 yrs
Approbation	CB, CCC
