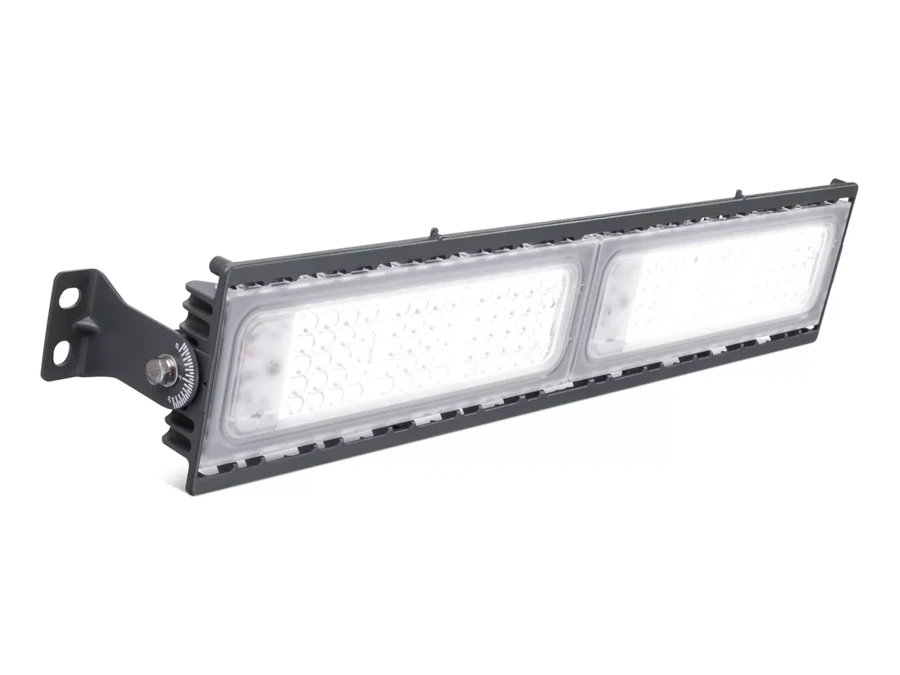

FlowBase G2 — BWP352
A compact, reliable and affordable tunnel lighting solution, engineered for the safety and visibility demands of any tunnel project.
BWP352 · Signify catalogue p.90
A lighting design that ensures safety and good visibility is a key element in the success of any tunnel project. Philips FlowBase G2 combines compact design, reliability, and affordability in one complete package to bring the perfect lighting solution for any tunnel application.
Toàn Tấn is an authorized Philips/Signify distributor in Vietnam — every FlowBase G2 BWP352 we supply is genuine, warrantied stock with local project support.
Technical specifications
| Model code | BWP352 |
|---|---|
| Luminous flux | Up to 32,000lm |
| Efficacy | 140lm/W |
| System voltage | 220/240V, 50/60Hz |
| System power | 60W / 120W / 180W / 240W |
| Operating temperature | -40ºC < Ta < 55ºC |
| Ambient temperature | 35ºC |
| Driver | 1-10V (default) |
| Salt spray | 500 hours |
| CRI | >70 |
| CCT | 3000K/4000K |
| Housing material | High-pressure cast aluminium |
| Colour | Grey |
| Lifetime | 55,000 hours L70B50 for easy maintenance and compliance |
| Reliable performance | Suitable to operate on higher temperature |
| IK rating | IK08 |
| Dimensions | Up to 60W 374 x 123 x 91mm · Up to 120W 675 x 123 x 91mm · Up to 180W 1011 x 123 x 127mm · Up to 240W 704 x 248 x 154mm |
| Badges | GreenMark Compliant · 55k hours · EE |
Specifications summarized from the Signify Professional Lighting Catalogue 2026–27; confirm exact ordering codes with our team.
Applications
- Tunnel lighting
