Higher system efficacy with typical 140lm/W
Full range of lumen packages to cover multiple flood, area, and sport lighting applications
Multiple optic options for flexible lighting design
High quality ADC1 diecast aluminum housing and steel bracket
High reliability: housing tested to ISO 9227 Salt Spray Fog Standard
Overall luminaire is rated for IP66 and IK08 protection
10kV or 15kV Surge protection Device

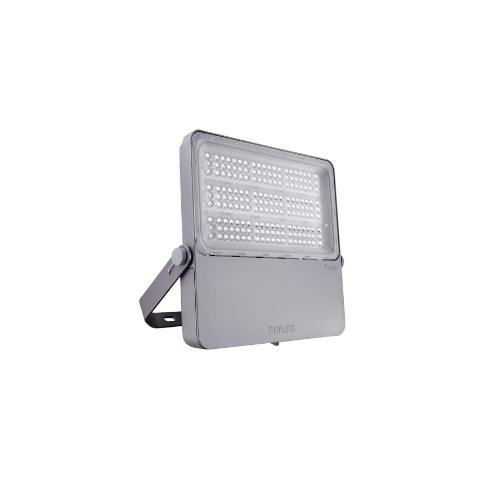

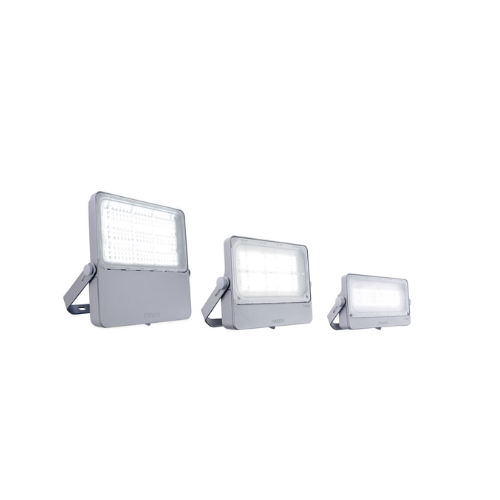

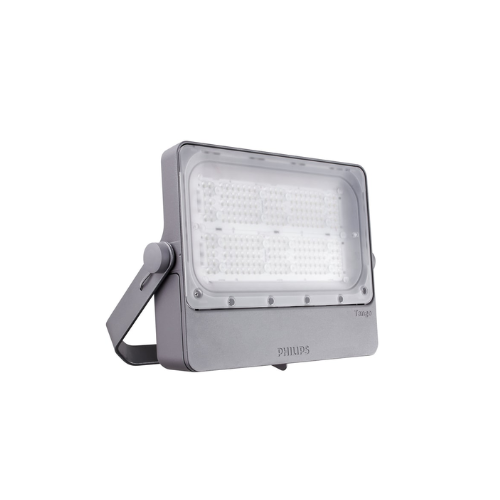

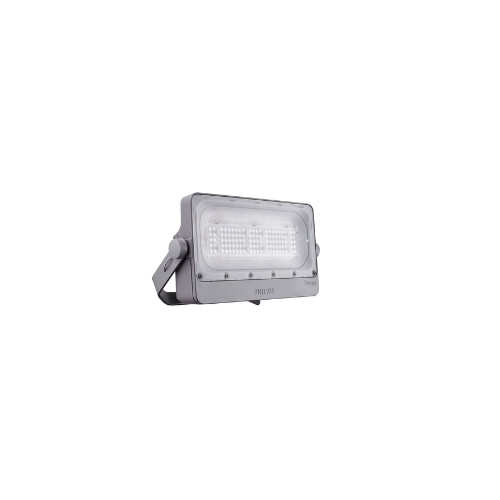

Philips Tango G4 LED Floodlight is the 4th generation of the Tango LED family. A new range of lighting that delivers higher efficacy and has an optimized windage area, and less weight thanks to its technical design. This product introduction is the ideal solution for a wide range of area lighting and recreational sports lighting applications. It incorporates the latest LED light source, one-piece optical system, heat sink and driver into a compact and robust housing that meets globally- recognized safety standards. Its specially-designed heat sink incorporates aesthetics and functionality to ensure excellent reliability. Powered by LED technology, Tango G4 LED floodlights deliver superior performance and a longer lifetime, bringing area lighting to a whole new level.
| 12NC | Description | Specification |
|---|---|---|
| 911401679406 | BVP431 LED68/NW 220~240V 50W SMB GM | 6800lm, 4000K |
| 911401679506 | BVP431 LED68/NW 220~240V 50W SWB GM | 6800lm, 4000K |
| 911401679606 | BVP431 LED67/NW 220~240V 50W AMB GM | 6700lm, 4000K |
| 911401681206 | BVP431 LED92/NW 220~240V 70W SMB GM | 9200lm, 4000K |
| 911401681306 | BVP431 LED92/NW 220~240V 70W SWB GM | 9200lm, 4000K |
| 911401681406 | BVP431 LED91/NW 220~240V 70W AMB GM | 9100lm, 4000K |
| 911401681506 | BVP431 LED92/CW 220~240V 70W SMB GM | 9200lm, 5700K |
| 911401681606 | BVP431 LED92/CW 220~240V 70W SWB GM | 9200lm, 5700K |
| 911401681706 | BVP431 LED91/CW 220~240V 70W AMB GM | 9100lm, 5700K |
| 911401683206 | BVP431 LED136/NW 220~240V 100W SWB GM | 13600lm, 4000K |
| 911401683306 | BVP431 LED134/NW 220~240V 100W AMB GM | 13400lm, 4000K |
| 911401683406 | BVP431 LED135/CW 220~240V 100W SMB GM | 13500lm, 5700K |
| 911401683506 | BVP431 LED135/CW 220~240V 100W SWB GM | 13500lm, 5700K |
| 911401683606 | BVP431 LED133/CW 220~240V 100W AMB GM | 13300lm, 5700K |
| 911401687606 | BVP432 LED161/CW 220~240V 120W SWB GM | 16100lm, 5700K |
| 911401689006 | BVP432 LED206/NW 220~240V 150W SMB GM | 20600lm, 4000K |
| 911401689106 | BVP432 LED206/NW 220~240V 150W SWB GM | 20600lm, 4000K |
| 911401689206 | BVP432 LED203/NW 220~240V 150W AMB GM | 20300lm, 4000K |
| 911401689306 | BVP432 LED204/CW 220~240V 150W SMB GM | 20400lm, 5700K |
| 911401689406 | BVP432 LED204/CW 220~240V 150W SWB GM | 20400lm, 5700K |
| 911401689506 | BVP432 LED202/CW 220~240V 150W AMB GM | 20200lm, 5700K |
| 911401690806 | BVP432 LED274/NW 220~240V 200W SMB GM | 27400lm, 4000K |
| 911401690906 | BVP432 LED274/NW 220~240V 200W SWB GM | 27400lm, 4000K |
| 911401691006 | BVP432 LED271/NW 220~240V 200W AMB GM | 27100lm, 4000K |
| 911401691106 | BVP432 LED272/CW 220~240V 200W SMB GM | 27200lm, 5700K |
| 911401691206 | BVP432 LED272/CW 220~240V 200W SWB GM | 27200lm, 5700K |
| 911401691306 | BVP432 LED269/CW 220~240V 200W AMB GM | 26900lm, 5700K |
| 911401695506 | BVP433 LED310/NW 220~240V 230W SMB GM | 31000lm, 4000K |
| 911401695606 | BVP433 LED310/NW 220~240V 230W SWB GM | 31000lm, 4000K |
| 911401695706 | BVP433 LED307/NW 220~240V 230W AMB GM | 30700lm, 4000K |
| 911401695806 | BVP433 LED286/NW 220~240V 230W SAWB GM | 28600lm, 4000K |
| 911401695906 | BVP433 LED313/NW 220~240V 230W NB GM | 31300lm, 4000K |
| 911401696006 | BVP433 LED313/NW 220~240V 230W S6 GM | 31300lm, 4000K |
| 911401696106 | BVP433 LED310/CW 220~240V 230W SMB GM | 31000lm, 5700K |
| 911401696206 | BVP433 LED310/CW 220~240V 230W SWB GM | 31000lm, 5700K |
| 911401696306 | BVP433 LED307/CW 220~240V 230W AMB GM | 30700lm, 5700K |
| 911401696406 | BVP433 LED286/CW 220~240V 230W SAWB GM | 28600lm, 5700K |
| 911401696506 | BVP433 LED313/CW 220~240V 230W NB GM | 31300lm, 5700K |
| 911401696606 | BVP433 LED313/CW 220~240V 230W S6 GM | 31300lm, 5700K |
| 911401698306 | BVP433 LED344/NW 220~240V 255W SMB GM | 34400lm, 4000K |
| 911401698406 | BVP433 LED344/NW 220~240V 255W SWB GM | 34400lm, 4000K |
| 911401698506 | BVP433 LED341/NW 220~240V 255W AMB GM | 34100lm, 4000K |
| 911401698606 | BVP433 LED318/NW 220~240V 255W SAWB GM | 31800lm, 4000K |
| 911401698706 | BVP433 LED348/NW 220~240V 255W NB GM | 34800lm, 4000K |
| 911401698806 | BVP433 LED348/NW 220~240V 255W S6 GM | 34800lm, 4000K |
| 911401698906 | BVP433 LED344/CW 220~240V 255W SMB GM | 34400lm, 5700K |
| 911401699006 | BVP433 LED344/CW 220~240V 255W SWB GM | 34400lm, 5700K |
| 911401699106 | BVP433 LED341/CW 220~240V 255W AMB GM | 34100lm, 5700K |
| 911401699206 | BVP433 LED318/CW 220~240V 255W SAWB GM | 31800lm, 5700K |
| 911401699306 | BVP433 LED348/CW 220~240V 255W NB GM | 34800lm, 5700K |
| 911401699406 | BVP433 LED348/CW 220~240V 255W S6 GM | 34800lm, 5700K |
| 911401600907 | BVP433 LED413/NW 220~240V 305W SMB GM | 41300lm, 4000K |
| 911401601007 | BVP433 LED413/NW 220~240V 305W SWB GM | 41300lm, 4000K |
| 911401601107 | BVP433 LED409/NW 220~240V 305W AMB GM | 40900lm, 4000K |
| 911401601207 | BVP433 LED382/NW 220~240V 305W SAWB GM | 38200lm, 4000K |
| 911401601307 | BVP433 LED418/NW 220~240V 305W NB GM | 41800lm, 4000K |
| 911401601407 | BVP433 LED418/NW 220~240V 305W S6 GM | 41800lm, 4000K |
| 911401601507 | BVP433 LED413/CW 220~240V 305W SMB GM | 41300lm, 5700K |
| 911401601607 | BVP433 LED413/CW 220~240V 305W SWB GM | 41300lm, 5700K |
| 911401601707 | BVP433 LED409/CW 220~240V 305W AMB GM | 40900lm, 5700K |
| 911401601807 | BVP433 LED382/CW 220~240V 305W SAWB GM | 38200lm, 5700K |
| 911401601907 | BVP433 LED418/CW 220~240V 305W NB GM | 41800lm, 5700K |
| 911401602007 | BVP433 LED418/CW 220~240V 305W S6 GM | 41800lm, 5700K |
| 911401603507 | BVP433 LED465/NW 220~240V 345W SMB GM | 46500lm, 4000K |
| 911401603607 | BVP433 LED465/NW 220~240V 345W SWB GM | 46500lm, 4000K |
| 911401603707 | BVP433 LED460/NW 220~240V 345W AMB GM | 46000lm, 4000K |
| 911401603807 | BVP433 LED430/NW 220~240V 345W SAWB GM | 43000lm, 4000K |
| 911401603907 | BVP433 LED470/NW 220~240V 345W NB GM | 47000lm, 4000K |
| 911401604007 | BVP433 LED470/NW 220~240V 345W S6 GM | 47000lm, 4000K |
| 911401604107 | BVP433 LED465/CW 220~240V 345W SMB GM | 46500lm, 5700K |
| 911401604207 | BVP433 LED465/CW 220~240V 345W SWB GM | 46500lm, 5700K |
| 911401604307 | BVP433 LED460/CW 220~240V 345W AMB GM | 46000lm, 5700K |
| 911401604407 | BVP433 LED430/CW 220~240V 345W SAWB GM | 43000lm, 5700K |
| 911401604507 | BVP433 LED470/CW 220~240V 345W NB GM | 47000lm, 5700K |
| 911401604607 | BVP433 LED470/CW 220~240V 345W S6 GM | 47000lm, 5700K |
| 911401606507 | BVP433 LED517/NW 220~240V 380W SMB GM | 51700lm, 4000K |
| 911401606607 | BVP433 LED517/NW 220~240V 380W SWB GM | 51700lm, 4000K |
| 911401606707 | BVP433 LED511/NW 220~240V 380W AMB GM | 47700lm, 4000K |
| 911401606807 | BVP433 LED477/NW 220~240V 380W SAWB GM | 52200lm, 4000K |
| 911401606907 | BVP433 LED522/NW 220~240V 380W NB GM | 52200lm, 4000K |
| 911401607007 | BVP433 LED522/NW 220~240V 380W S6 GM | 52200lm, 4000K |
| 911401607107 | BVP433 LED517/CW 220~240V 380W SMB GM | 51700lm, 5700K |
| 911401607207 | BVP433 LED517/CW 220~240V 380W SWB GM | 51700lm, 5700K |
| 911401607307 | BVP433 LED511/CW 220~240V 380W AMB GM | 51100lm, 5700K |
| 911401607407 | BVP433 LED477/CW 220~240V 380W SAWB GM | 47700lm, 5700K |
| 911401607507 | BVP433 LED522/CW 220~240V 380W NB GM | 52200lm, 5700K |
| 911401607607 | BVP433 LED522/CW 220~240V 380W S6 GM | 52200lm, 5700K |
| 911401683806 | BVP431 LED134/NW 100W AMB 1-10V P7 GM | |
| 911401657407 | BVP431 LED134/NW 100W AMB LP 1-10V P7 GM | |
| 911401657107 | BVP431 LED134/NW 100W AMB PSD P7 GM | |
| 911401656807 | BVP431 LED134/NW 100W AMB SR GM | |
| 911401657207 | BVP432 LED203/NW 150W AMB PSD P7 GM | |
| 911401656907 | BVP432 LED203/NW 150W AMB SR GM | |
| 911401691506 | BVP432 LED271/NW 200W AMB 1-10V P7 GM | |
| 911401657507 | BVP432 LED271/NW 200W AMB LP 1-10V P7 GM | |
| 911401657307 | BVP433 LED375/NW 300W SAWB PSD P7 GM | |
| 911401657007 | BVP433 LED375/NW 300W SAWB SR GM | |
| 911401607707 | BVP433 LED477/NW 380W SAWB 1-10V P7 GM | |
| 911401657607 | BVP433 LED477/NW 380W SAWB LP1-10V P7 GM |
