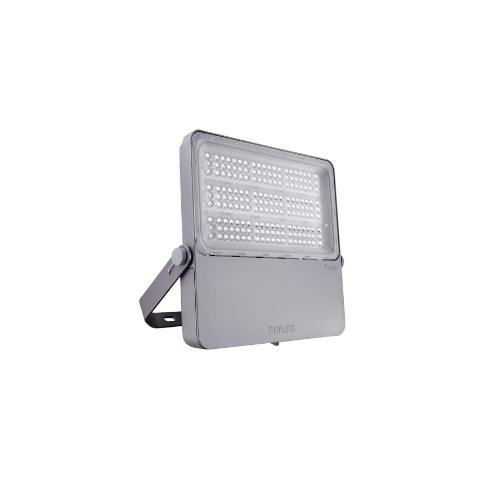

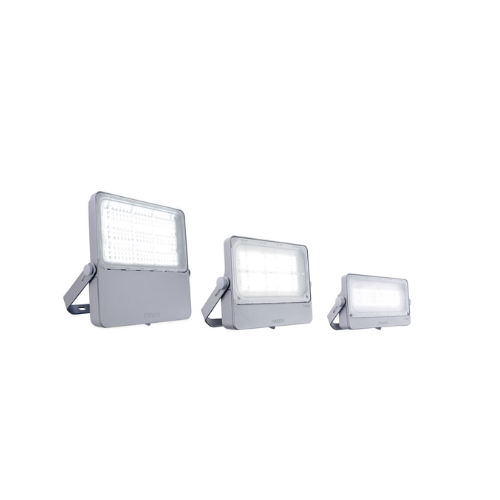

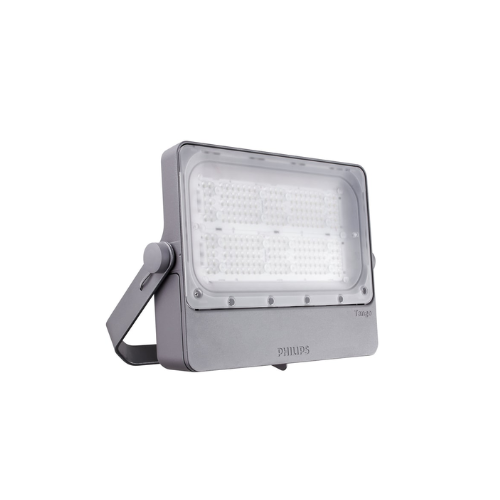

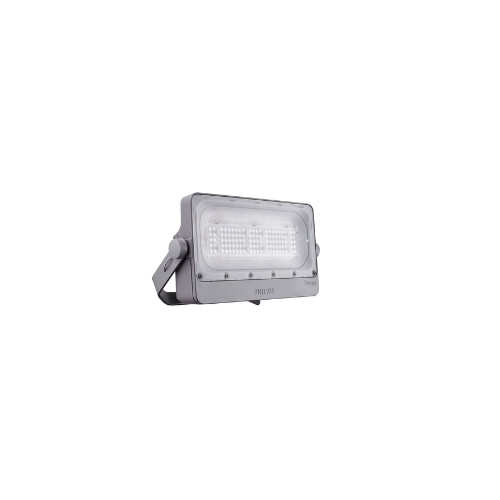

PHILIPS Tango G4 LED - BVP43x

Higher system efficacy with typical 140lm/W

Full range of lumen packages to cover multiple flood, area, and sport lighting applications

Multiple optic options for flexible lighting design

High quality ADC1 diecast aluminum housing and steel bracket

High reliability: housing tested to ISO 9227 Salt Spray Fog Standard

Overall luminaire is rated for IP66 and IK08 protection

10kV or 15kV Surge protection Device

PHILIPS Tango G4 LED - BVP43x

Philips Tango G4 LED Floodlight is the 4th generation of the Tango LED family. A new range of lighting that delivers higher efficacy and has an optimized windage area, and less weight thanks to its technical design. This product introduction is the ideal solution for a wide range of area lighting and recreational sports lighting applications. It incorporates the latest LED light source, one-piece optical system, heat sink and driver into a compact and robust housing that meets globally- recognized safety standards. Its specially-designed heat sink incorporates aesthetics and functionality to ensure excellent reliability. Powered by LED technology, Tango G4 LED floodlights deliver superior performance and a longer lifetime, bringing area lighting to a whole new level.

  • Saves 10% more energy than Tango G3
  • Covers a wide range of applications
  • Optimized design: 23% less weight and 35% less windage area (size) than Tango Gen3
  • Create a brighter, more energetic, and safer environment
  • Robust and reliable design.

Applications

  • General flood lighting
  • Large industrial areas/Car park areas
  • Billboards, Building facades, Airport apron
  • Transportation terminals & Tollways

Order Information

12NC Description Specification
911401679406 BVP431 LED68/NW 220~240V 50W SMB GM 6800lm, 4000K
911401679506 BVP431 LED68/NW 220~240V 50W SWB GM 6800lm, 4000K
911401679606 BVP431 LED67/NW 220~240V 50W AMB GM 6700lm, 4000K
911401681206 BVP431 LED92/NW 220~240V 70W SMB GM 9200lm, 4000K
911401681306 BVP431 LED92/NW 220~240V 70W SWB GM 9200lm, 4000K
911401681406 BVP431 LED91/NW 220~240V 70W AMB GM 9100lm, 4000K
911401681506 BVP431 LED92/CW 220~240V 70W SMB GM 9200lm, 5700K
911401681606 BVP431 LED92/CW 220~240V 70W SWB GM 9200lm, 5700K
911401681706 BVP431 LED91/CW 220~240V 70W AMB GM 9100lm, 5700K
911401683206 BVP431 LED136/NW 220~240V 100W SWB GM 13600lm, 4000K
911401683306 BVP431 LED134/NW 220~240V 100W AMB GM 13400lm, 4000K
911401683406 BVP431 LED135/CW 220~240V 100W SMB GM 13500lm, 5700K
911401683506 BVP431 LED135/CW 220~240V 100W SWB GM 13500lm, 5700K
911401683606 BVP431 LED133/CW 220~240V 100W AMB GM 13300lm, 5700K
911401687606 BVP432 LED161/CW 220~240V 120W SWB GM 16100lm, 5700K
911401689006 BVP432 LED206/NW 220~240V 150W SMB GM 20600lm, 4000K
911401689106 BVP432 LED206/NW 220~240V 150W SWB GM 20600lm, 4000K
911401689206 BVP432 LED203/NW 220~240V 150W AMB GM 20300lm, 4000K
911401689306 BVP432 LED204/CW 220~240V 150W SMB GM 20400lm, 5700K
911401689406 BVP432 LED204/CW 220~240V 150W SWB GM 20400lm, 5700K
911401689506 BVP432 LED202/CW 220~240V 150W AMB GM 20200lm, 5700K
911401690806 BVP432 LED274/NW 220~240V 200W SMB GM 27400lm, 4000K
911401690906 BVP432 LED274/NW 220~240V 200W SWB GM 27400lm, 4000K
911401691006 BVP432 LED271/NW 220~240V 200W AMB GM 27100lm, 4000K
911401691106 BVP432 LED272/CW 220~240V 200W SMB GM 27200lm, 5700K
911401691206 BVP432 LED272/CW 220~240V 200W SWB GM 27200lm, 5700K
911401691306 BVP432 LED269/CW 220~240V 200W AMB GM 26900lm, 5700K
911401695506 BVP433 LED310/NW 220~240V 230W SMB GM 31000lm, 4000K
911401695606 BVP433 LED310/NW 220~240V 230W SWB GM 31000lm, 4000K
911401695706 BVP433 LED307/NW 220~240V 230W AMB GM 30700lm, 4000K
911401695806 BVP433 LED286/NW 220~240V 230W SAWB GM 28600lm, 4000K
911401695906 BVP433 LED313/NW 220~240V 230W NB GM 31300lm, 4000K
911401696006 BVP433 LED313/NW 220~240V 230W S6 GM 31300lm, 4000K
911401696106 BVP433 LED310/CW 220~240V 230W SMB GM 31000lm, 5700K
911401696206 BVP433 LED310/CW 220~240V 230W SWB GM 31000lm, 5700K
911401696306 BVP433 LED307/CW 220~240V 230W AMB GM 30700lm, 5700K
911401696406 BVP433 LED286/CW 220~240V 230W SAWB GM 28600lm, 5700K
911401696506 BVP433 LED313/CW 220~240V 230W NB GM 31300lm, 5700K
911401696606 BVP433 LED313/CW 220~240V 230W S6 GM 31300lm, 5700K
911401698306 BVP433 LED344/NW 220~240V 255W SMB GM 34400lm, 4000K
911401698406 BVP433 LED344/NW 220~240V 255W SWB GM 34400lm, 4000K
911401698506 BVP433 LED341/NW 220~240V 255W AMB GM 34100lm, 4000K
911401698606 BVP433 LED318/NW 220~240V 255W SAWB GM 31800lm, 4000K
911401698706 BVP433 LED348/NW 220~240V 255W NB GM 34800lm, 4000K
911401698806 BVP433 LED348/NW 220~240V 255W S6 GM 34800lm, 4000K
911401698906 BVP433 LED344/CW 220~240V 255W SMB GM 34400lm, 5700K
911401699006 BVP433 LED344/CW 220~240V 255W SWB GM 34400lm, 5700K
911401699106 BVP433 LED341/CW 220~240V 255W AMB GM 34100lm, 5700K
911401699206 BVP433 LED318/CW 220~240V 255W SAWB GM 31800lm, 5700K
911401699306 BVP433 LED348/CW 220~240V 255W NB GM 34800lm, 5700K
911401699406 BVP433 LED348/CW 220~240V 255W S6 GM 34800lm, 5700K
911401600907 BVP433 LED413/NW 220~240V 305W SMB GM 41300lm, 4000K
911401601007 BVP433 LED413/NW 220~240V 305W SWB GM 41300lm, 4000K
911401601107 BVP433 LED409/NW 220~240V 305W AMB GM 40900lm, 4000K
911401601207 BVP433 LED382/NW 220~240V 305W SAWB GM 38200lm, 4000K
911401601307 BVP433 LED418/NW 220~240V 305W NB GM 41800lm, 4000K
911401601407 BVP433 LED418/NW 220~240V 305W S6 GM 41800lm, 4000K
911401601507 BVP433 LED413/CW 220~240V 305W SMB GM 41300lm, 5700K
911401601607 BVP433 LED413/CW 220~240V 305W SWB GM 41300lm, 5700K
911401601707 BVP433 LED409/CW 220~240V 305W AMB GM 40900lm, 5700K
911401601807 BVP433 LED382/CW 220~240V 305W SAWB GM 38200lm, 5700K
911401601907 BVP433 LED418/CW 220~240V 305W NB GM 41800lm, 5700K
911401602007 BVP433 LED418/CW 220~240V 305W S6 GM 41800lm, 5700K
911401603507 BVP433 LED465/NW 220~240V 345W SMB GM 46500lm, 4000K
911401603607 BVP433 LED465/NW 220~240V 345W SWB GM 46500lm, 4000K
911401603707 BVP433 LED460/NW 220~240V 345W AMB GM 46000lm, 4000K
911401603807 BVP433 LED430/NW 220~240V 345W SAWB GM 43000lm, 4000K
911401603907 BVP433 LED470/NW 220~240V 345W NB GM 47000lm, 4000K
911401604007 BVP433 LED470/NW 220~240V 345W S6 GM 47000lm, 4000K
911401604107 BVP433 LED465/CW 220~240V 345W SMB GM 46500lm, 5700K
911401604207 BVP433 LED465/CW 220~240V 345W SWB GM 46500lm, 5700K
911401604307 BVP433 LED460/CW 220~240V 345W AMB GM 46000lm, 5700K
911401604407 BVP433 LED430/CW 220~240V 345W SAWB GM 43000lm, 5700K
911401604507 BVP433 LED470/CW 220~240V 345W NB GM 47000lm, 5700K
911401604607 BVP433 LED470/CW 220~240V 345W S6 GM 47000lm, 5700K
911401606507 BVP433 LED517/NW 220~240V 380W SMB GM 51700lm, 4000K
911401606607 BVP433 LED517/NW 220~240V 380W SWB GM 51700lm, 4000K
911401606707 BVP433 LED511/NW 220~240V 380W AMB GM 47700lm, 4000K
911401606807 BVP433 LED477/NW 220~240V 380W SAWB GM 52200lm, 4000K
911401606907 BVP433 LED522/NW 220~240V 380W NB GM 52200lm, 4000K
911401607007 BVP433 LED522/NW 220~240V 380W S6 GM 52200lm, 4000K
911401607107 BVP433 LED517/CW 220~240V 380W SMB GM 51700lm, 5700K
911401607207 BVP433 LED517/CW 220~240V 380W SWB GM 51700lm, 5700K
911401607307 BVP433 LED511/CW 220~240V 380W AMB GM 51100lm, 5700K
911401607407 BVP433 LED477/CW 220~240V 380W SAWB GM 47700lm, 5700K
911401607507 BVP433 LED522/CW 220~240V 380W NB GM 52200lm, 5700K
911401607607 BVP433 LED522/CW 220~240V 380W S6 GM 52200lm, 5700K
911401683806 BVP431 LED134/NW 100W AMB 1-10V P7 GM
911401657407 BVP431 LED134/NW 100W AMB LP 1-10V P7 GM
911401657107 BVP431 LED134/NW 100W AMB PSD P7 GM
911401656807 BVP431 LED134/NW 100W AMB SR GM
911401657207 BVP432 LED203/NW 150W AMB PSD P7 GM
911401656907 BVP432 LED203/NW 150W AMB SR GM
911401691506 BVP432 LED271/NW 200W AMB 1-10V P7 GM
911401657507 BVP432 LED271/NW 200W AMB LP 1-10V P7 GM
911401657307 BVP433 LED375/NW 300W SAWB PSD P7 GM
911401657007 BVP433 LED375/NW 300W SAWB SR GM
911401607707 BVP433 LED477/NW 380W SAWB 1-10V P7 GM
911401657607 BVP433 LED477/NW 380W SAWB LP1-10V P7 GM
